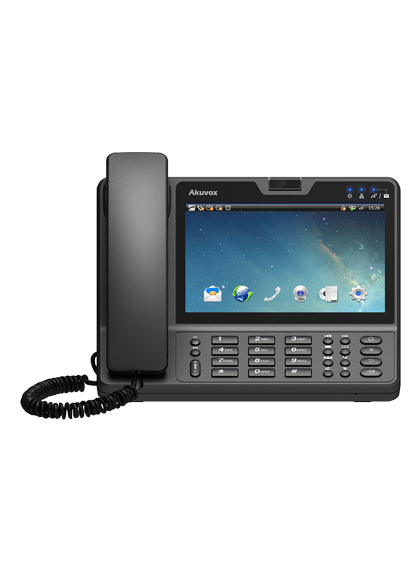

R48G (phone)

The R48G is an Android IP video phone. This multimedia terminal not only brings diverse services to business of varied scales, but also doubles as an indoor monitor that works seamlessly with Akuvox door phones.

SKU: SI-009 Category:


  • At a Glance

    7 inch capacitive touch screen TFT LCD, 1024*600 pixels
    2M pixels CMOS camera with privacy shutter
    Dual switched 10/100/1000Mbps Ethernet ports, supporting IEEE802.11af and IEEE802.az Energy Efficient Ethernet
    Built-in Bluetooth, USB and Wi-Fi feature
    Android 5.1 Operating System and support Android API for the 3rd party Android application installation
    Voice and Video Codec : PCMA,PCMU, G.722, G.723, G.729AB, H.263, H.264
    Protocol: SIP RFC3261, TCP/UDP/IP, PPPoE, RTP/RTCP, HTTP/HTTPS, etc
  • Video Features

    Video Codec: H.263, H.264, H.265, VP8
    Video Solution: QCIF, CIF, VGA, 4CIF, 720P
    Video Bitrate: 64kbps-2Mbps
    Adaptive Bandwidth Adjustment
    Video Character: PIP, Full Screen, Local
    Video ON/OFF Control, Color Enhancement
    Image Codec: JPEG, GIF, PNG, BMP
    Hardware Encode/Decode Acceleration
    Variable Bit-Rate
  • Audio Features

    Wideband Audio Codec: G.722
    Narrowband Audio Codec: PCMA, PCMU,OPUS, iLBC, G.723, G.729AB
    Noise Suppression, VAD, CNG, AGC,
    Audio Accelerator
    Echo Cancelation: AEC, AES, NLP
    Full-Duplex Speakerphone
    4 DTMF modes: RFC2833, In-Band, SIP INFO, Auto
  • Network and Security

    SIP V1(RFC2543), SIP V2(RFC3261)
    Network Type: IPv4 & IPv6
    Network Packet Capture
    UDP Keep Alive
    NAT traversal: STUN
    IP Assignment: DHCP, Static IP, PPPoE, VPN,VLAN
    QoS: Layer 2 (802.1Q, 802.1p) and Layer 3(ToS, DiffServ)
    Digest Authentication Using MD5/MD5-sess
    AES encryption for configuration file
    Access for Administration
  • Phone Features

    Android 5.1 Operation System
    Support 6 SIP accounts
    Call Waiting
    Call Transfer
    Call Hold
    Auto Redial, Call Return
    Speed Dial
    Direct IP call
    Dial Plan
    Multicast Paging
    Action URL/URI
    Local Audio/Video Call Recording
    DND (Do Not Disturb)
    Volume Adjustable
    Ring Tones Selectable
    Multi-Languages Support
    Daylight Saving Time
    Default Apps: Browser, Calculator,Calendar, Camera, Clock, Contacts, Dial,Downloads, Explorer, Gallery, Message,Music, Phone Settings, Reboot Setting,Search, Settings, Sound Recorder,Surveillance, Video.
    3rd Party Android Applications
  • Directory

    Local Phonebook up to 3000 Groups
    Phonebook with Contact Picture
    Call Logs: 600 Entries (200 Missed Calls;200 Dialed Calls; 200 Received Calls.)
    Intelligent Search Method
  • Management

    Firmware Local Update: USB Flash Disk
    Firmware Remote Update: HTTP/HTTPS method on Web
    Auto Provisioning Using FTP/TFTP/HTTP/HTTPS,PNP/DHCP Option/Manual/Automatic methods
    System Log Export
    Restore to Factory Default
    Configuration Managements Via LCD
  • Physical Features

    7 Inch Capacitive Touch Screen, Resolution 1024*600, 16:9 Wide Screen Aspect Ratio
    3 LED Lights (1 Power Light, 1 Network Light, and 1 Message Light)
    28 Keys
    Programmable Smart Keys (phisical or virtual)
    Flash Memory 8GB
    2GB DDR3 Memory
    Foot Stand
    2 Mega Pixels CMOS Camera, Free Rotation
    RJ9 Handset
    3.5mm Headset jack
    2 RJ45 10/100/1000M Ethernet Jacks
    Energy Efficient Ethernet: IEEE802.3az
    Power over Ethernet: IEEE802.3af
    Wireless Access: 802.11b/g/n
    1 USB 2.0
    1 HDMI Video Out Port
    Power Adapter: AC 100~240V Input, DC 12V/1A Output
    Dimensions: 240*213*120mm
    Operating Temperature: 32° ~ 104°F (0~ 40°C)
    Storage Temperature: -4°~ 158°F (-20 ~ 70°C)
    Operating Humidity: 10% to 90% Noncondensing
    Storage Humidity: 10% to 90% Noncondensing
    Power consumption (approx.): 12W
    Weight (approx.): 1.44kg
    Giftbox Size: 255*198*128mm
