C315

50,00

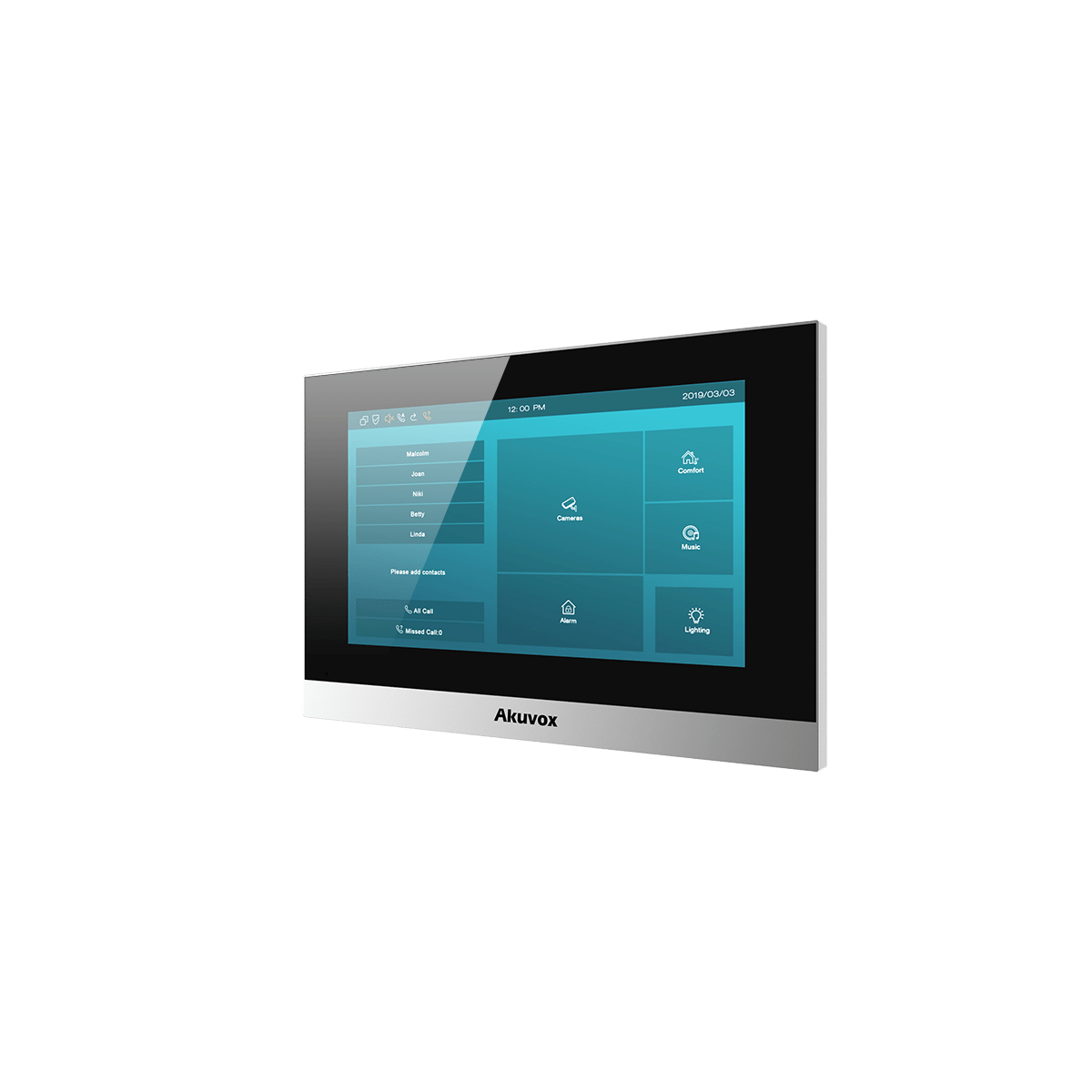

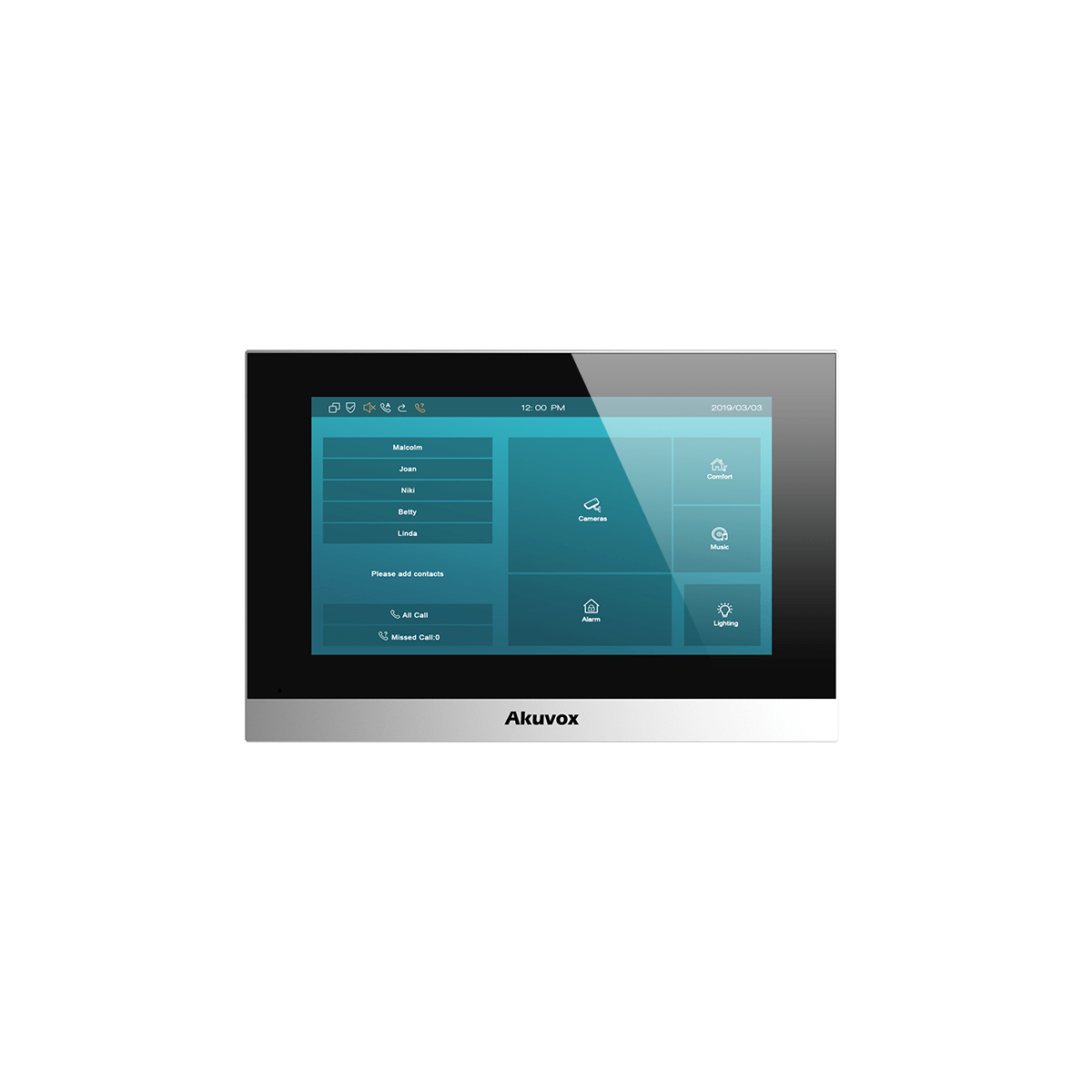

The C315 is a 7” Android indoor monitor. With a compact body, it fits into limited space and offers a fat stack of features. It is typically used in apartments.

SKU: SI-022 Category:

Description

  • At a Glance

    Ultra-clear, stylish appearance
    Thin profile and small footprint
    7-inch capacitive touch screen with energy saving mode
    Two-way audio communication with other units in the network
    Complies with SIP standard for easy integration in every SIP capable PBXes
    Powered by PoE or external source
    Support US or European electrical wall box mounting
  • Physical & Power

    Front panel: Plastic
    RAM / ROM: 1GB / 8GB
    Display: 7 Inch TFT LCD
    Screen: 7 Inch capacitive touch screen
    Wi-Fi: IEEE802.11b/g/n, @2.4GHz
    RS485 port: Support
    Relay out: 1
    Bell in: 1
    I/O: 8
    Microphone: -58dB
    Speaker: 4Ω / 2W
    Ethernet ports: 2xRJ45, 10/100Mbps adaptive
    802.3af Power-over-Ethernet
    12V DC connector (if not using PoE)
    Installation: Wall-mounted & Desktop
    Dimension: 200.2×132.2×27.2mm
    Working Humidity: 10~90%
    Working Temperature: -10°C ~ +45°C
    Storage Temperature: -20°C ~ +70°C
  • Touch Screen Display

    Display Mode: Normally white, Transmissive
    LCD Size: 7inch (Diagonal)
    Resolution: 1024×600
    Contrast ratio: 800:1
    Luminance: 270 cd/m2
    Viewing Angle: 75° Left, 75° Right, 70° Upper, 75° Lower
    Touch Screen: Projected capacitive
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
    Automatic Gain Control
  • Video

    Streaming formats: H.263 & H.264
  • Networking

    Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
  • Deployment & Maintenance

    Auto-Provisioning
    Web management portal
    Web-based packet dump
    Configuration backup / restore
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Villas
    Apartment complexes
    Home automation systems
    Modern interiors
