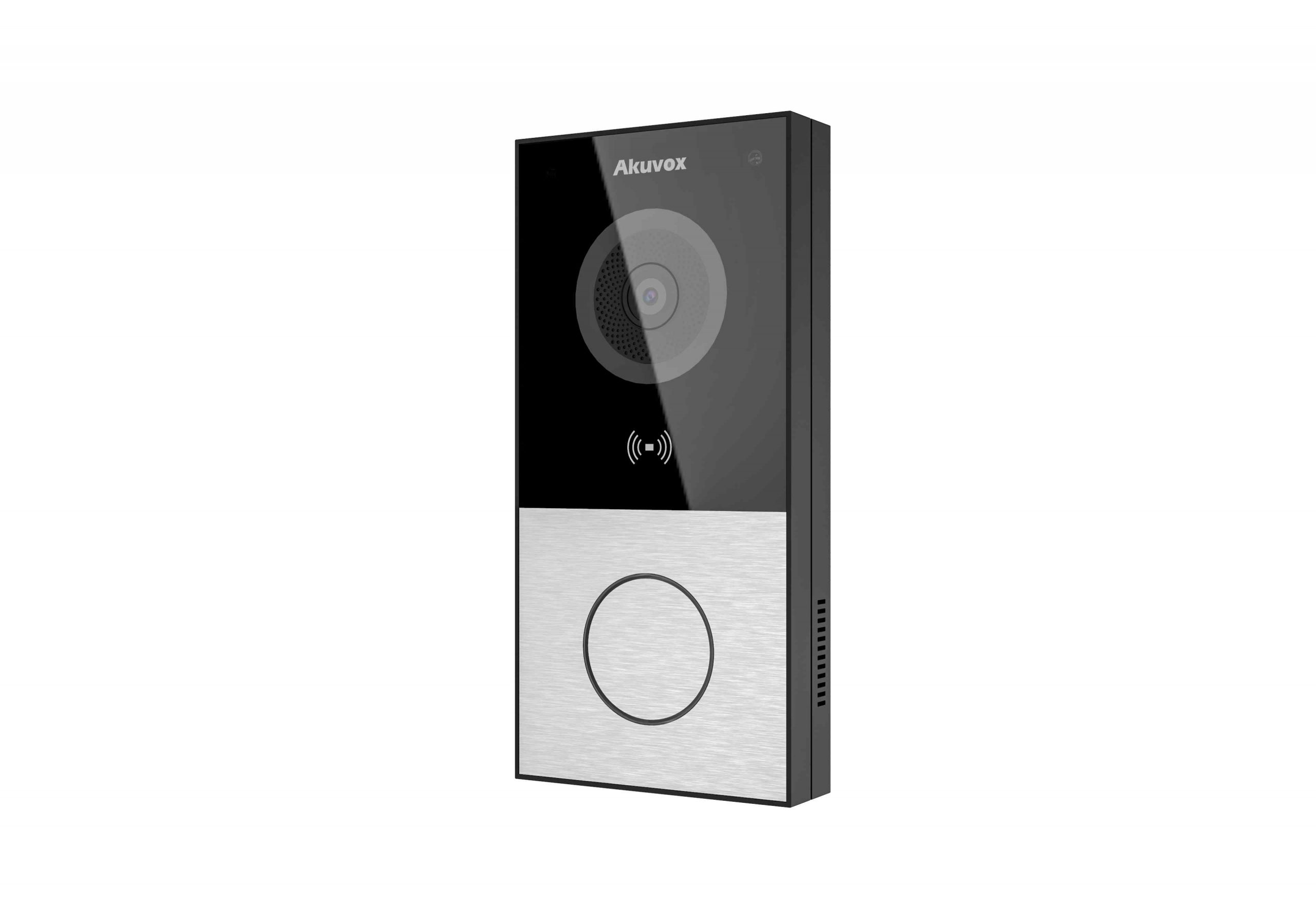

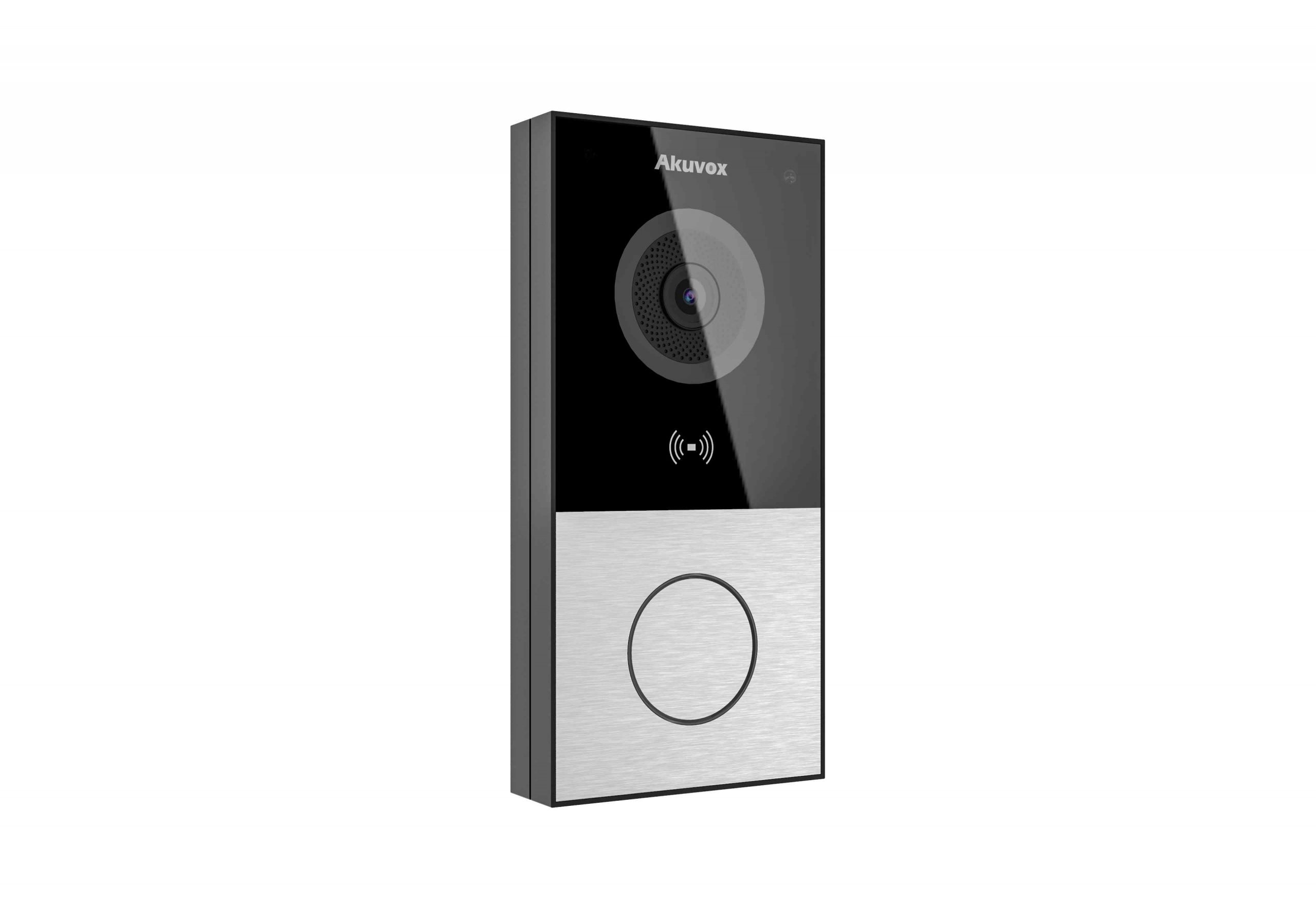

E12 is a single-button SIP video door phone for all types of front doors, be it houses, apartments, or condos.
Despite a slim body, it boasts many cutting-edge features, such as mobile access and wireless communication.

SKU: SI-NewSeries3-1 Category:


  • Physical & Power

    Body Material: Plastic
    Camera: 2M pixels, automatic lighting
    Button: 1 call button with backlight
    Wiegand port: Support
    RF card reader: 13.56MHz
    Light sensor: 1
    Relays out: 1
    Inputs: 2
    Micro SD card slot: 1
    Microphone: -36dB
    Speaker: 8Ω / 1.5W
    Ethernet port: RJ45, 10/100Mbps adaptive
    BLE: Yes
    WiFi: IEEE802.11b/g/n, 2.4GHz (E12W Only)
    Vandal alarm: Yes
    802.3af Power-over-Ethernet
    12V DC connector (if not using PoE)
    Power: 12V / 1A
    Water-proof & Dust-proof: IP65
    Installation: Wall-mounted
    Size: 146x70x23mm
    Working Humidity: 10~90%
    Working Temperature: -40°C ~ +60°C
    Storage Temperature: -40°C ~ +70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Video

    Sensor: 1/2.7”, CMOS
    Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
    Video codec: H.264, H.265
    Video resolution: up to 1920x1080p
    Max. image transfer rate: 1080p – 25fps
    Viewing angle: 123°(H) / 69°(V)
    White LEDs for picture lighting during dark hours with internal light sensor
  • Door Entry Feature

    Relays controlled individually by DTMF tones
    Camera permanently operational
    Auto-night mode with LED illumination
    White balance: auto
    Minimum illumination: 0.1LUX
  • Networking & Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
  • Deployment & Maintenance

    Web management portal
    Configuration backup / restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Apartment/flat intercom with door access control
    Remote site entry over Internet
