R26B

15,0020,00

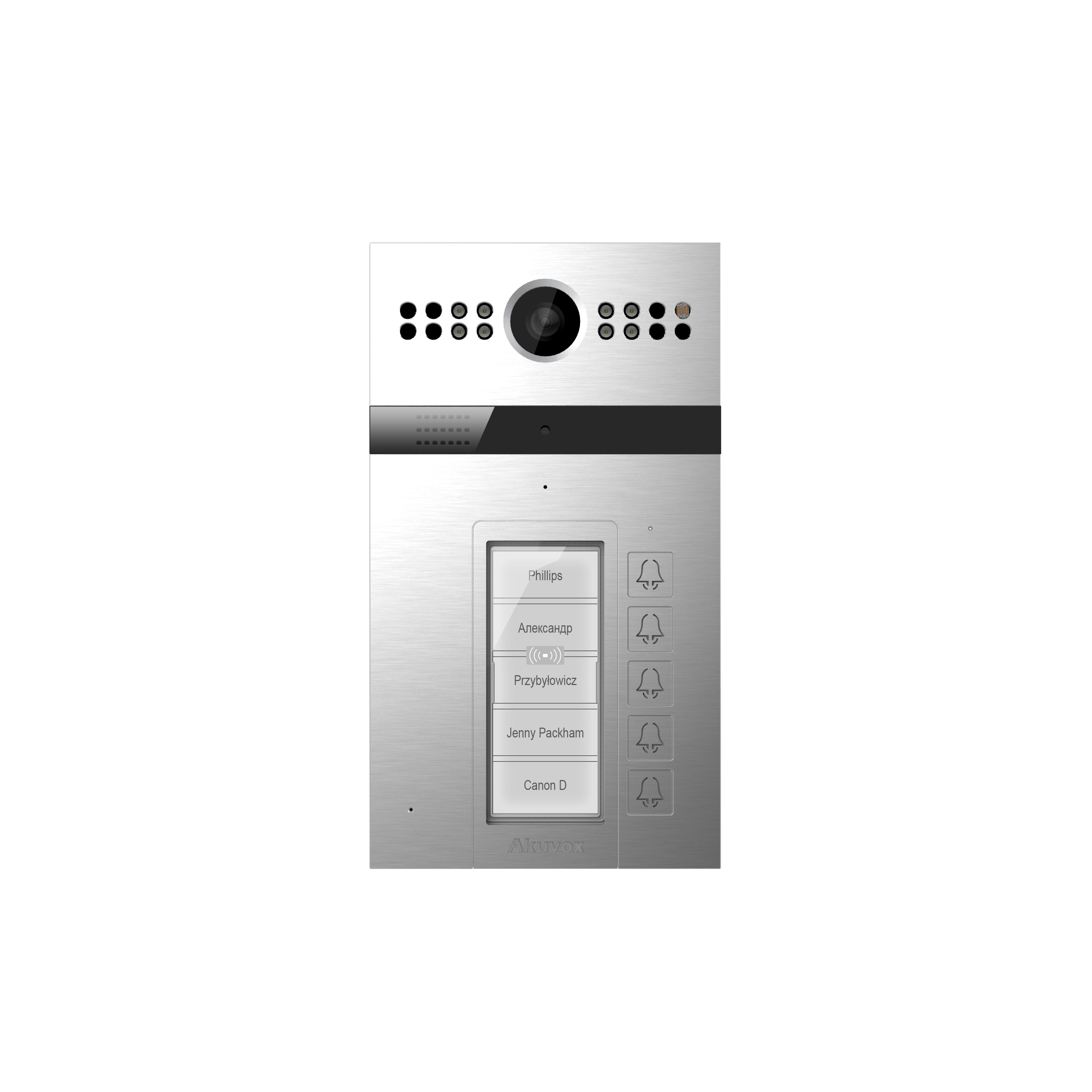

The R26B is SIP video doorphone with access control. The five pushbuttons come with nameplates displaying tenants’ names or apartment numbers. It is typically used in villas, houses and offices.

Clear
SKU: SI-015 Category:

Description

  • At a Glance

    Vandal resistant body, 5 call buttons with name plate;
    Wide-angle camera: 116° (H), 60° (V);
    PoE (IEEE802.3af, Power-over-Ethernet);
    Two-way audio communication over IP networks with Echo Cancel feature;
    Complies with SIP standard for easy integration in every SIP capable PBXes;
    Complies with ONVIF standard for easy integration with any network surveillance system;
  • Physical & Power

    Front panel: Aluminum
    Camera: 2M pixels, automatic lighting
    Buttons: 5 call buttons with name plate
    Light sensor: Support
    Infrared sensor: Support
    Wiegand port: Support
    RS485 port: Support
    RF card reader: 13.56MHz & 125kHz
    Relays out: 2
    Inputs: 3
    Microphone: -40dB
    Speaker: 8Ω / 2W
    Ethernet port: RJ45, 10/100Mbps adaptive
    802.3af Power-over-Ethernet
    12V DC connector (if not using PoE)
    Water-proof & Dust-proof: IP65
    Installation: Wall-mounted
    Wall-mounted DIM: 196x110x39.5mm
    Working Humidity: 10~90%
    Working Temperature: -20°C ~ +55°C
    Storage Temperature: -40°C ~ +70°C
  • Audio

    SIP v1 (RFC2543), SIP v2 (RFC3261)
    Narrowband audio codec: G.711a, G.711μ, G.729
    Broadband audio codec: G.722
    DTMF: In-band, out-of-band DTMF (RFC2833),SIP Info
    Echo Cancellation
    Voice Activation Detection
    Comfort Noise Generator
  • Video

    Sensor: 1/2.7”, CMOS
    Pixels: CIF, QCIF, VGA, 4CIF, 720p
    Video codec: H.264, H.265
    Video resolution: up to 1920x1080p
    Max. image transfer rate: 1080p – 30fps
    Viewing angle: 116°(H) / 60°(V)
    High intensity IR LEDs for picture lighting during dark hours with internal light sensor
    Compatible to 3rd-Party-Video components,e.g. NVRs
  • Door Entry Feature

    Relays controlled individually by DTMF tones
    Camera permanently operational
    Auto-night mode with LED illumination
    White balance: auto
    Auto-night mode with LED illumination
    Minimum illumination: 0.1LUX
  • Networking & Protocol

    Protocols support: IPv4, HTTP, HTTPS, FTP,SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP,DHCP, ARP
  • Deployment & Maintenance

    Auto-Provisioning
    Web management portal
    Web-based packet dump
    Configuration backup / restore
    Entry log export
    Access table export / import
    Firmware upgrade
    System logs (include door access logs)
  • Application Scenario

    Office door phone with on-site or hosted IP-PBX
    Remote site entry over Internet
    Apartment/flat intercom with door access control

Additional information

Color

Blue, Green, Red

Size

Large, Medium, Small
